MicroVAX 3100 Model 95 Power Supply

I have a MicroVAX 3100 Model 95 that I acquired some years ago. At 32 VUPs it is one of the faster MicroVAXen.

MicroVAX 3100 Model 95

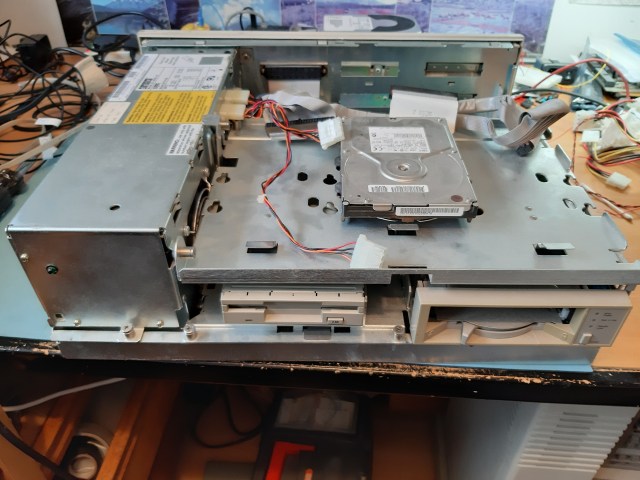

From the front with RX33 and TZ30

MicroVAX 3100 Model 95

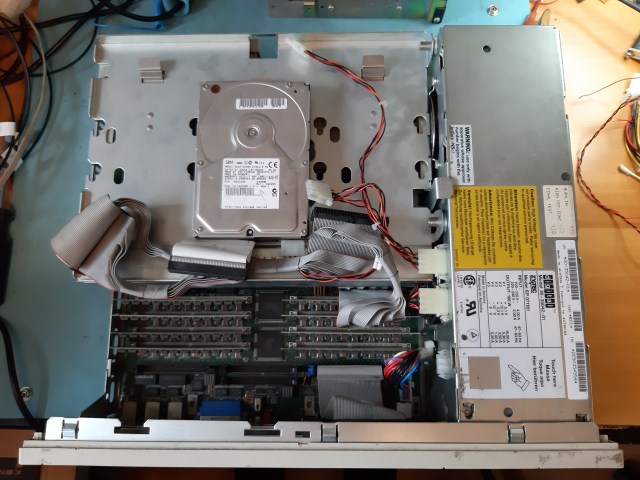

Showing 32MB of installed memory

Some time ago I stopped using it because memory modules would suddenly stop working. At the time, I checked the power supply and some of the voltages seemed to be a little out of tolerance, in particular the output marked as 5.1V seemed to be producing 5.3V. I put the machine to one side because at the time I had little knowledge of repairing power supplies.

Recently I decided to take another look at the power supply with a view to getting the machine up and running again, given it is such a comparatively fast machine. I checked the ripple on the outputs but what I saw were spikes. The spikes seemed to reduce in amplitude after a few seconds. It turns out that I was measuring the ripple with poor technique, but I don’t know what the original ripple was now, because I replaced the majority of the electrolytic capacitors before realising my error.

I decided to replace any vaguely suspect electrolytic capacitors, which included the two big smoothing capacitors as one had a high ESR and the other appeared to be bulging slightly. I discovered that one of these would not fully discharge, which I found when I tried to measure its ESR after having had it powered on. Thankfully the meter had some protective diodes, which now need replacing.

After replacing the suspect capacitors I excitedly put it all back together, only to find that it would not power on. It turned out, that following some other sparks I managed to get from the not fully discharged smoothing capacitor I had ended up frying the UC3842N pulse width modulator. Fortunately I had a spare on hand (UC3842AN), replacing it fixed the power supply, and also seemed to resolve the problem of the capacitor not discharging.

Sadly, I also managed to break the connection to the power LED out to the front of the PSU, so now I won’t have that working.

After resolving my measurement mistakes the ripple on the 5V and 12V outputs was about 20mV and the voltages seemed to be right. So I put the machine back together again.

Unfortunately it seems that one of the memory modules is not quite right because the firmware reports an error:

KA51-A V2.6, VMB 2.1
Performing normal system tests.
74..73..72..71..70..69..68..67..66..65..64..63..62..61..60..59..
58..57..56..55..54..53..52..51..50..49..48..47..46..45..44..43..
42..41..40..39..38..37..36..35..34..33..32..31..

? Test_Subtest_40_06 Loop_Subtest=00 Err_Type=FF   DE_Memory_count_pages.lis

30..29..28..27..26..25..24..23..22..21..20..19..18..17..16..15..
14..13..12..11..10..09..08..07..06..05..04..03..

16 MB RAM, SIMM Set (0A,0B,0C,0D) present
Memory Set 0: 00000000 to 00FFFFFF, 16MB, 32768 good pages, 0 bad pages
Error: SIMM Set 1 (1E,1F,1G,1H)
 SIMM_1E = 16MB ??   SIMM_1F = 16MB     SIMM_1G = 16MB     SIMM_1H = 16MB
Memory Set 1: 01000000 to 01FFFFFF, 16MB, 0 good pages, 32768 bad pages

Total of 32MB, 32768 good pages, 32768 bad pages, 112 reserved pages

Tests completed.

However, VMS seems to think everything is OK.

$ sh mem
              System Memory Resources on 10-MAY-2020 13:24:53.80

Physical Memory Usage (pages):     Total        Free      In Use    Modified
  Main Memory (32.00Mb)            65536       21316       42491        1729

So I am hoping the machine will now work reliably.
