5019574 Schematic
By
rjarratt
|
Published
September 23, 2018
|
Full size is
3895 × 2594
pixels
Rainbow 100+
5019574 - Labelled

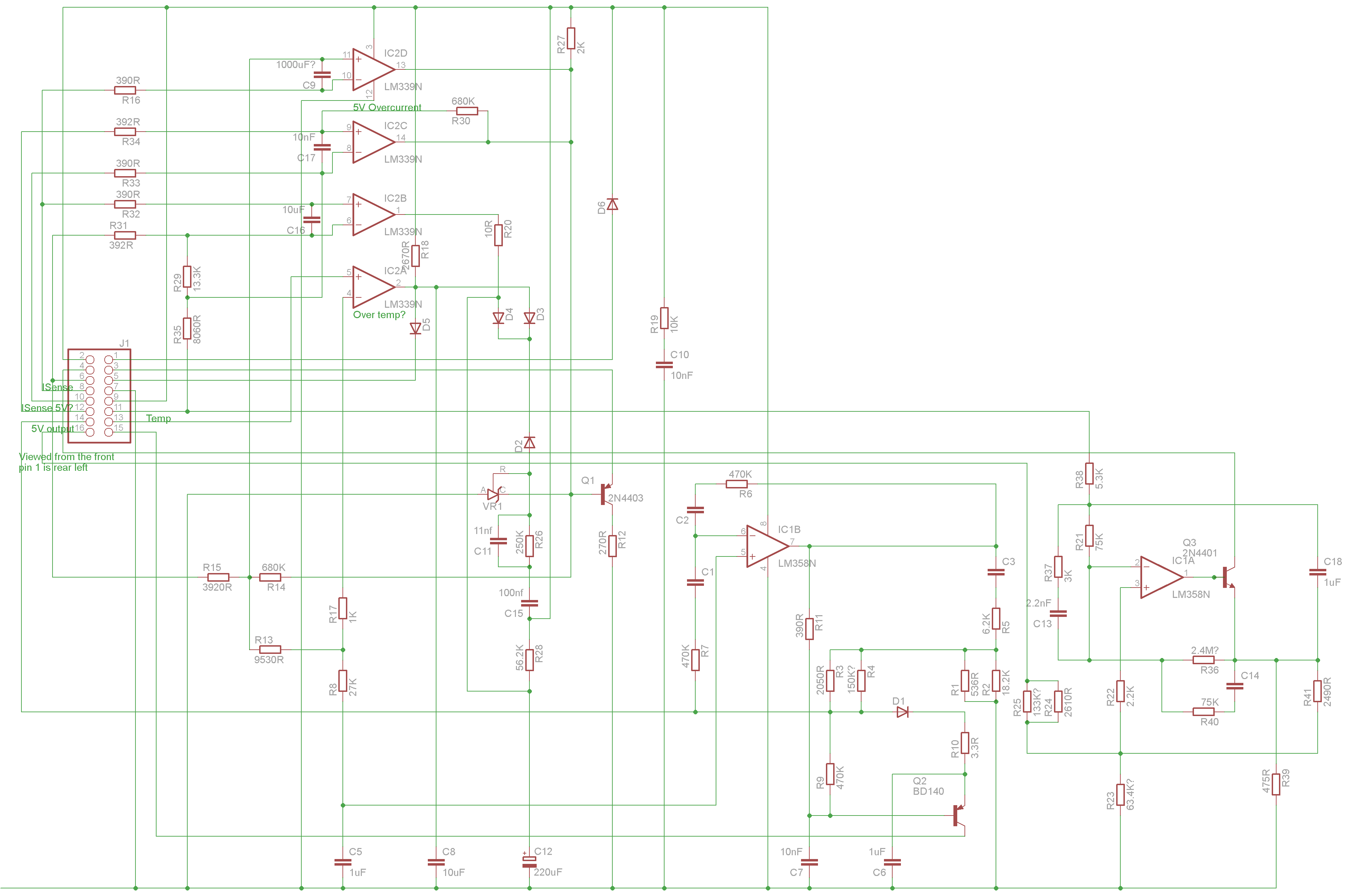

Schematic for the 5019574 daughter board for the H7826 Power Supply
