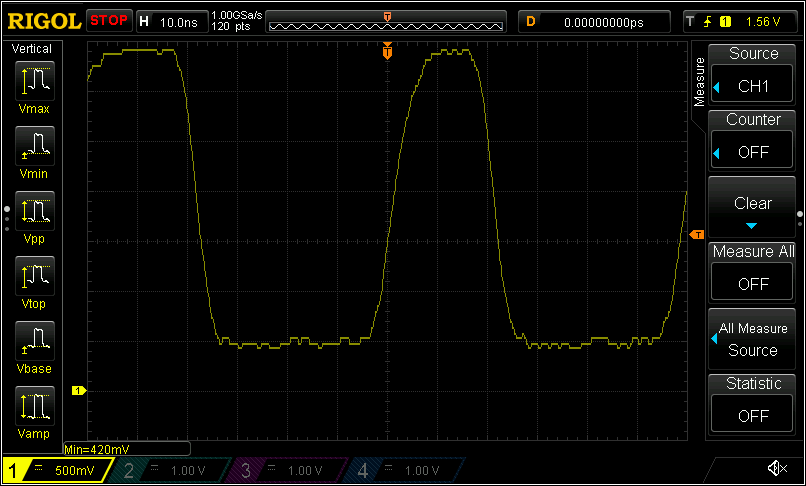

VT102 74S299 CLK With Shorter Ground Lead

On the VT102, this is the CLK input to the 74S299 with a longer ground lead than the previous picture. The 74S299 is also in circuit in this case.
