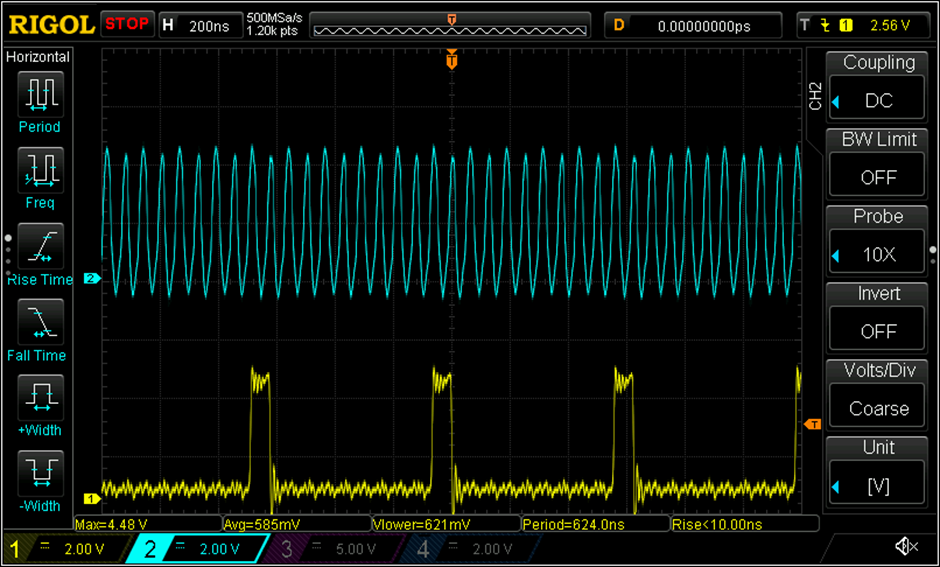

Working VT102 signals on the Video Shift Register (74S299). The blue signal is BV4 DOT CLK and the yellow signal is BV4 VSR LOAD H.
Working VT102 signals on the Video Shift Register (74S299). The blue signal is BV4 DOT CLK and the yellow signal is BV4 VSR LOAD H.
