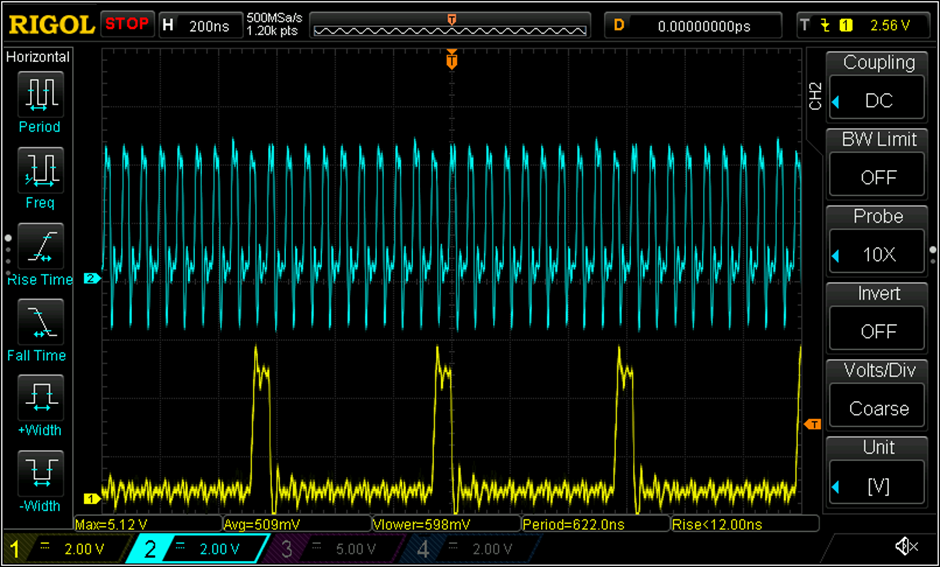

VT100 signals on E10, the Video Shift Register (74S299). The blue signal is BV4 DOT CLK and the yellow signal is BV4 VSR LOAD H.
