H744 Ripple With Whine

By | Published January 5, 2022 | Full size is 806 × 486 pixels

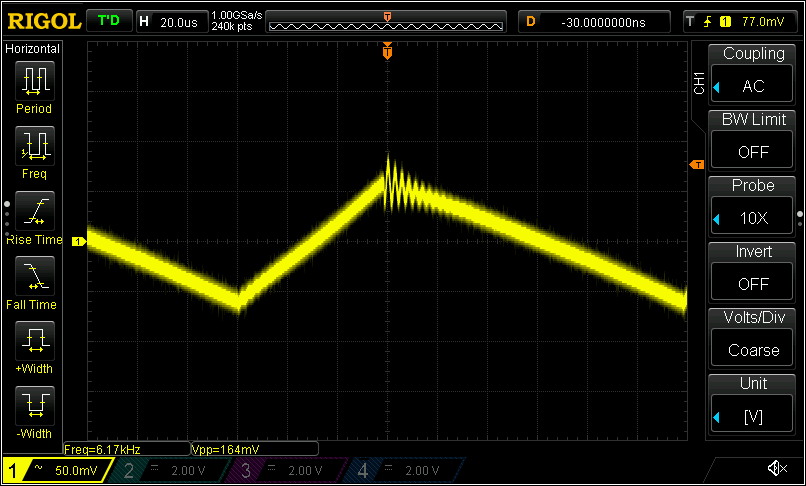

Ripple on 5V output from a H744 regulator supplied with 20VDC from a bench PSU. The regulator emits an audible whine.
