VAXmate From The Side With Boards and Floppy Drive Removed

By rjarratt | Published December 21, 2019 | Full size is 5664 × 4248 pixels

VAXmate From Behind With Some Boards Removed

VAXmate H7270 PSU

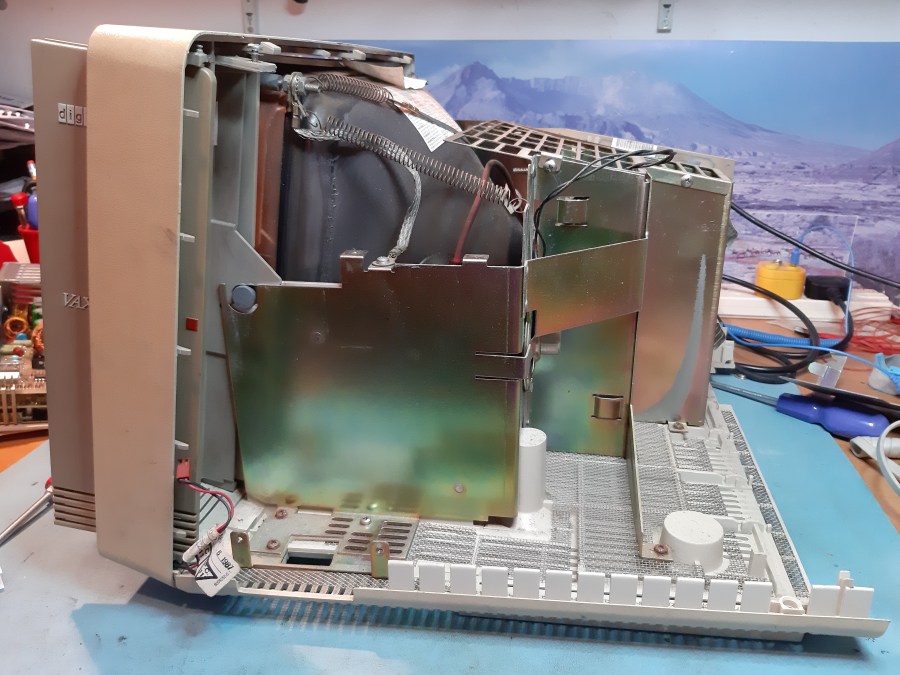

VAXmate from the side with boards and floppy disk drive removed. The two wires at the bottom left are for the front power LED
